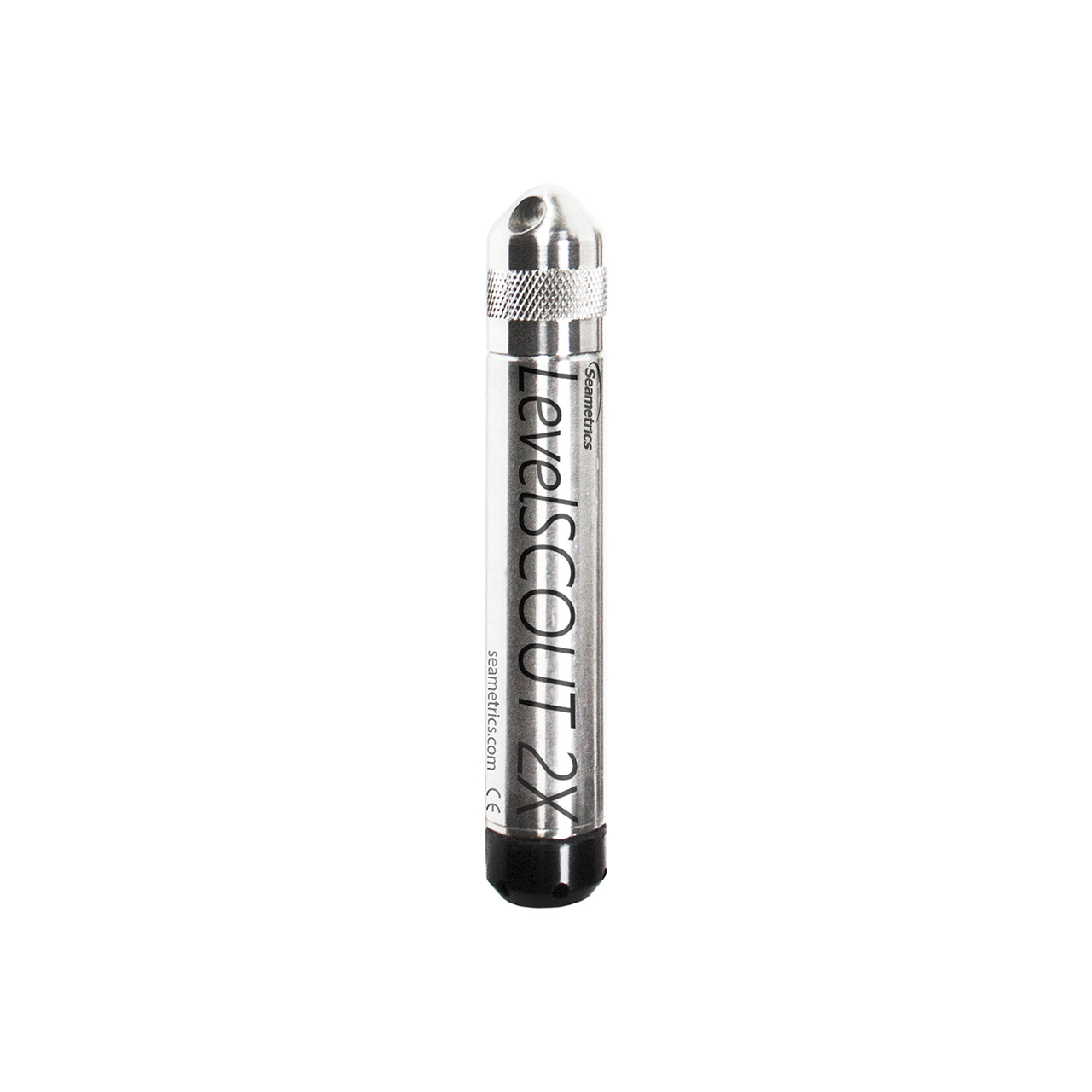

SeaMetrics - Pressure & Level Sensor - LevelSCOUT 2X - Low-cost Level & Temperature Datalogging

Introducing the new LevelSCOUT 2X Absolute Level Logger, the next generation of our LevelSCOUT Series level and temperature sensors with integrated datalogging. Now equipped with more memory, increased protection, and more customization options, the Level.

Call 800-370-0439 for pricing
Part Number
  • 999-637-060
Manufactured
Availability
  • Call for availability

Features

  • Features:
  • Increased memory to 100,000 records
  • SDI-12 or Modbus RTU RS485 output
  • 5-year battery life
  • Double O-rings for added protection
  • Optional custom length cabling
  • Selectable Baud rates
  • Small diameter—0.875″ (2.22 cm)
  • Complimentary Aqua4Plus control software
  • Sensor
  • Measures level, temperature, and time
  • Thermally compensated—great where water temperatures vary, such as in streams or industrial tank applications
  • ± 0.05% Full Scale Accuracy
  • Low power—5-year battery life
  • 316 stainless steel, fluoropolymer, and acetal construction
  • Modbus® RTU or SDI-12 protocol—for great flexibility
  • Datalogger
  • Non-volatile memory—your data will not be lost in the event of a power failure
  • Pause logging feature—temporarily pause the logging while repositioning or transporting sensor
  • Delayed start feature—state a specific future start time, making it easy to set several sensors to start at the same time
  • Cabling & Networking
  • Wireless connectivity
  • RS485 network—allows several sensors to be networked together and provides much longer cable leads
  • Field-serviceable connectors—easily remove the connector, route cable through well seals, walls, or conduit, and then replace connector
  • Available cable-less or with a user attachable PU or ETFE cable
  • Software
  • Comes with free Aqua4Plus control software to get you up and running immediately
  • View your data in real-time
  • Easy export to spreadsheets and databases
  • Barometric compensation utility
  • Update sensor via firmware while in the field—great for future updates
  • Applications
    • Aquifer level monitoring
    • Aquifer storage & recovery
    • Environmental monitoring
    • Pumping tests
    • Site assessments
    • Surface water discharge measurement
    • Tidal studies
Introducing the new LevelSCOUT 2X Absolute Level Logger, the next generation of our LevelSCOUT Series level and temperature sensors with integrated datalogging. Now equipped with more memory, increased protection, and more customization options, the LevelSCOUT 2X is designed to fit more applications and last longer than ever before. It's constructed with 316 stainless steel, fluoropolymer, and acetal, providing highly accurate readings in rugged and corrosive field conditions.  The LevelSCOUT 2X features our free state-of-the-art logging software, Aqua4Plus, and is compatible with most telemetry and control systems.  The LevelSCOUT 2X features replaceable batteries, field serviceable cables, and modular design to protect your investment and the environment. Replaces the LevelSCOUT as of December 31, 2021.
