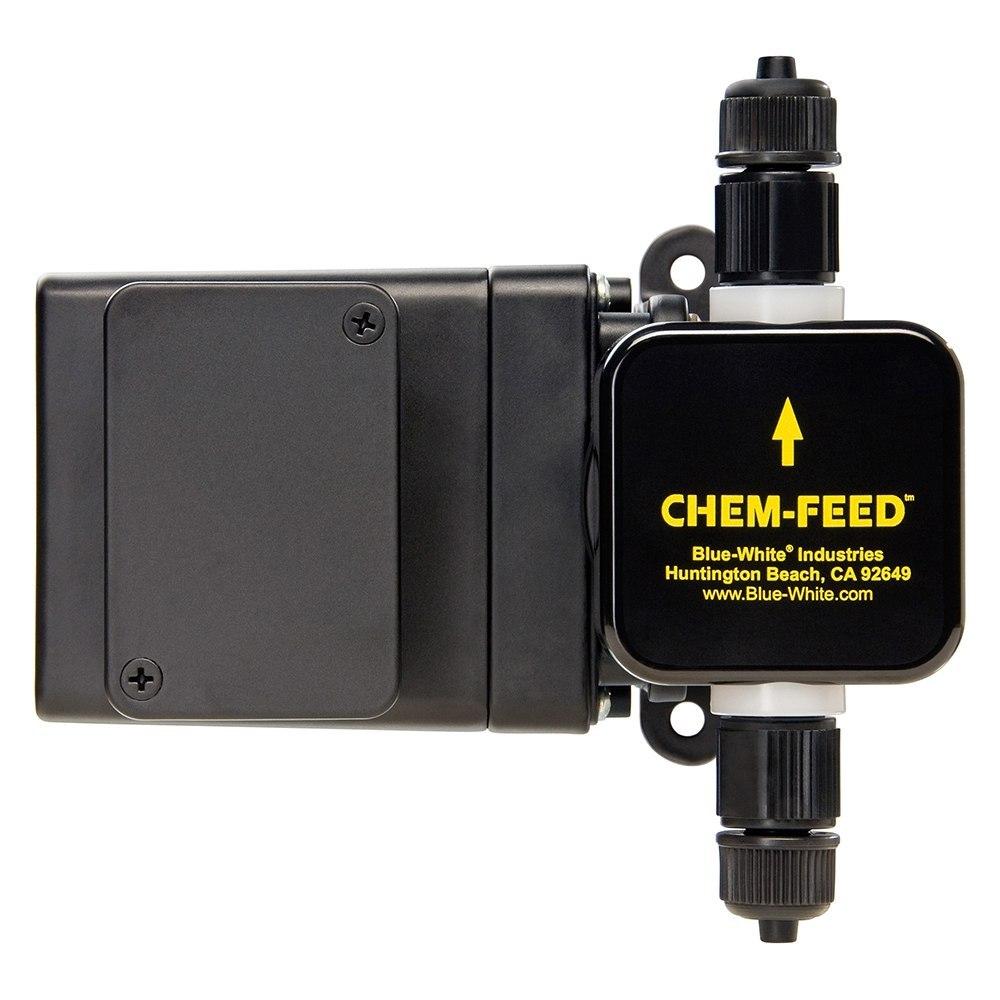

Blue-White C-600P CHEM-FEED® Diaphragm Metering Pump

The CHEM-FEED® C-600P Diaphragm Metering Pump is a simple and economical solution to a wide range of commercial and industrial fluid process applications.  This compact pump features an all-ball bearing, permanently lubricated gear motor for smooth, power.

Call 800-370-0439 for pricing
Part Numbers
  • 999-199-010
  • 999-199-101
Manufactured
Availability
  • Call for availability
Product Specs (2 Files)

Features

  • Maximum Working Pressure
  • 125 psig (8.6 bar)
  • Maximum Fluid Temperature
  • 130° F (54° C)
  • Maximum Ambient Temperature
  • 14 to 110° F/ -10 to 43° C
  • Maximum Viscosity
  • 1,000 Centipoise
  • Maximum Suction Lift
  • 10 ft. Water at sea level (14.7 atm psi)
  • Operating Voltage
  • 115VAC/60Hz, 1ph (.74 Amp Maximum)
  • 230VAC/60Hz, 1ph (.36 Amp Maximum)
  • 220VAC/50Hz, 1ph (.31 Amp Maximum)
  • 24VAC/60Hz, 1ph (3.40 Amp Maximum)
  • 12VAC/60Hz, 1ph (3.00 Amp Maximum)
  • 24VAC/50Hz, 1ph (1.50 Amp Maximum)
  • Power Connection
  • Junction box for field wiring
  • Motor
  • AC shaded pole
  • Duty Cycle
  • Continuous
  • Output Adjustment Range
  • 4% – 100% motor speed
  • Enclosure
  • NEMA 1 (IP20) powder coated zinc
  • Approximate shipping wt
  • 8 lb. (3.63 Kg)
  • RoHS Compliant
  • Yes
  • Standards
  • NSF/ANSI 50, UL, CSA, CE
  • Applications
    • Agriculture
    • Boiler Water Treatment
    • Cooling Tower Water Treatment
    • Food & Beverage
    • Industrial Water and Wastewater
    • Livestock
    • Mining
    • Oil and Gas
    • Pulp and Paper
Benefits: What's Included:
