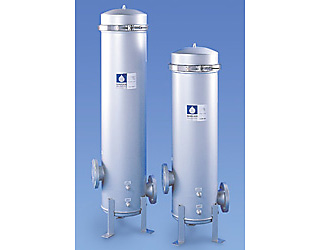

Shelco - 12FOS Multi Cartridge Housing

The Shelco multi cartridge housings are available in 12 and 22 round models and are designed for flow rates up to 600 GPM.

Call 800-370-0439 for pricing
Part Number
  • 999-513-001
Manufactured
Availability
  • Call for availability
Product Specs

Features

  • Design for industrial and commercial filtration needs
  • Pipe fittings readily accessible for
  • Heavy-duty stainless steel construction for durability
  • 304L standard and 316L stainless steel available
  • Band clamp and swing-bolt closures for quick cartridge change outs
  • Heavy duty mounting legs standard easy installation
  • Knife-edge seal at both cartridge ends to eliminate by-pass
  • Adjustable top plate for more cartridge options
The Shelco multi cartridge housings are available in 12 and 22 round models and are designed for flow rates up to 600 GPM. Housings accept double-open-end style cartridges.  Options include 304L or 316L stainless steel; band clamp or swing bolt closure.  Design pressure 150psi (10bar) @ 300OF (149OC).   Standard inlet and outlet connections for the 12FOS series is 3" flanged and the 22FOS series is 4" flanged, with many other options available by special order.  Standard finish is Poly-coat over stainless.  All 12 and 22 round models are standard with heavy duty mounting legs.  Standard gasket is FDA grade Buna-N.
